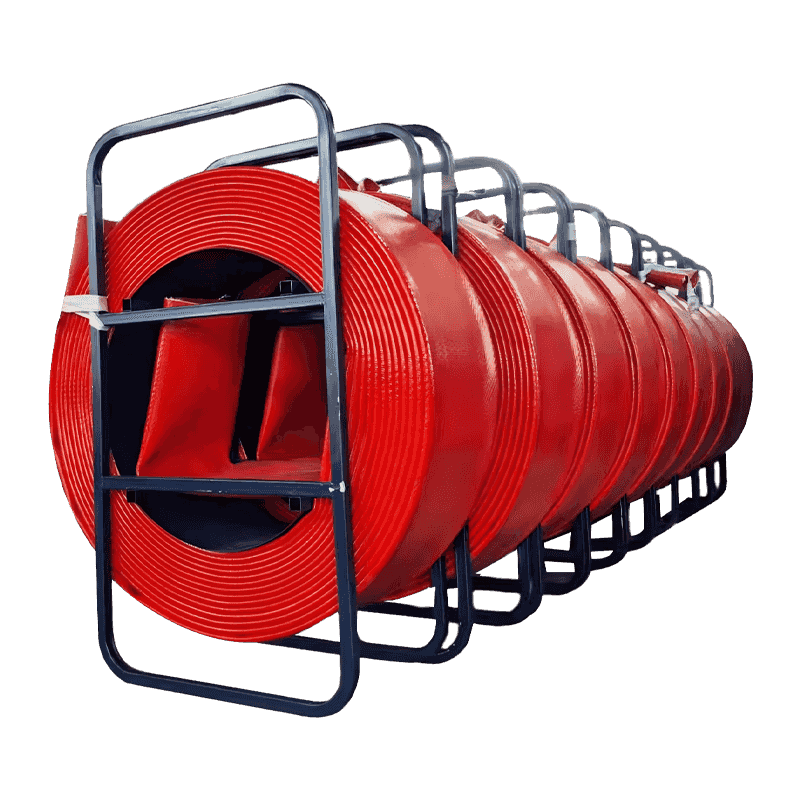

Co-extrusion TPU Hose
Advantages
● Higher pressure resistance
● Excellent resistance to UV, oil, and chemicals
● High aging resistance
● Abrasion and Weather Resistance
Properties
● Length up to 60m
● Operating temperature from -40℃ to 80 ℃
Reinforcement: High tenacity synthetic jacket
Lining&Cover TPU with Ribbed cover /Smooth cover
Applications
Transfer hydraulic fracturing fluids from tank trucks to the wellhead or other equipment, and can also be used for fluid
transfer between various components on the drill site, such as pumps, blenders, and frac tanks.
| Inner diameter | Working pressure | Burst pressure | Weight | |||
| inch | mm | Psi | Bar | Psi | Bar | g/m |
| 2 | 51 | 200－300 | 14-21 | 600-900 | 42-63 | 200-250 |
| 3 | 76 | 200-300 | 14-21 | 600-900 | 42-63 | 360-450 |
| 4 | 102 | 200/250 | 14/17 | 600/750 | 42/51 | 1500-1700 |
| 5 | 125 | 200/250 | 14/17 | 600/750 | 42/51 | 1850-2100 |
| 6 | 152 | 200/250 | 14/17 | 600/750 | 42/51 | 2300-2650 |
| 8 | 204 | 150/200 |
10-14 |
450/600 | 30/42 | 2850-3300 |
| 10 | 254 | 150/200 | 10-14 | 450/600 | 30/42 | 3220-3950 |
| 12 | 306 | 150/200 | 10-14 | 450/600 | 30/42 | 4500-5100 |
| 14 | 356 | 150/200 | 10-14 | 450/600 | 30/42 | 6000-6600 |
| 16 | 400 | 120 | 8 | 360 | 24 | 7500 |
